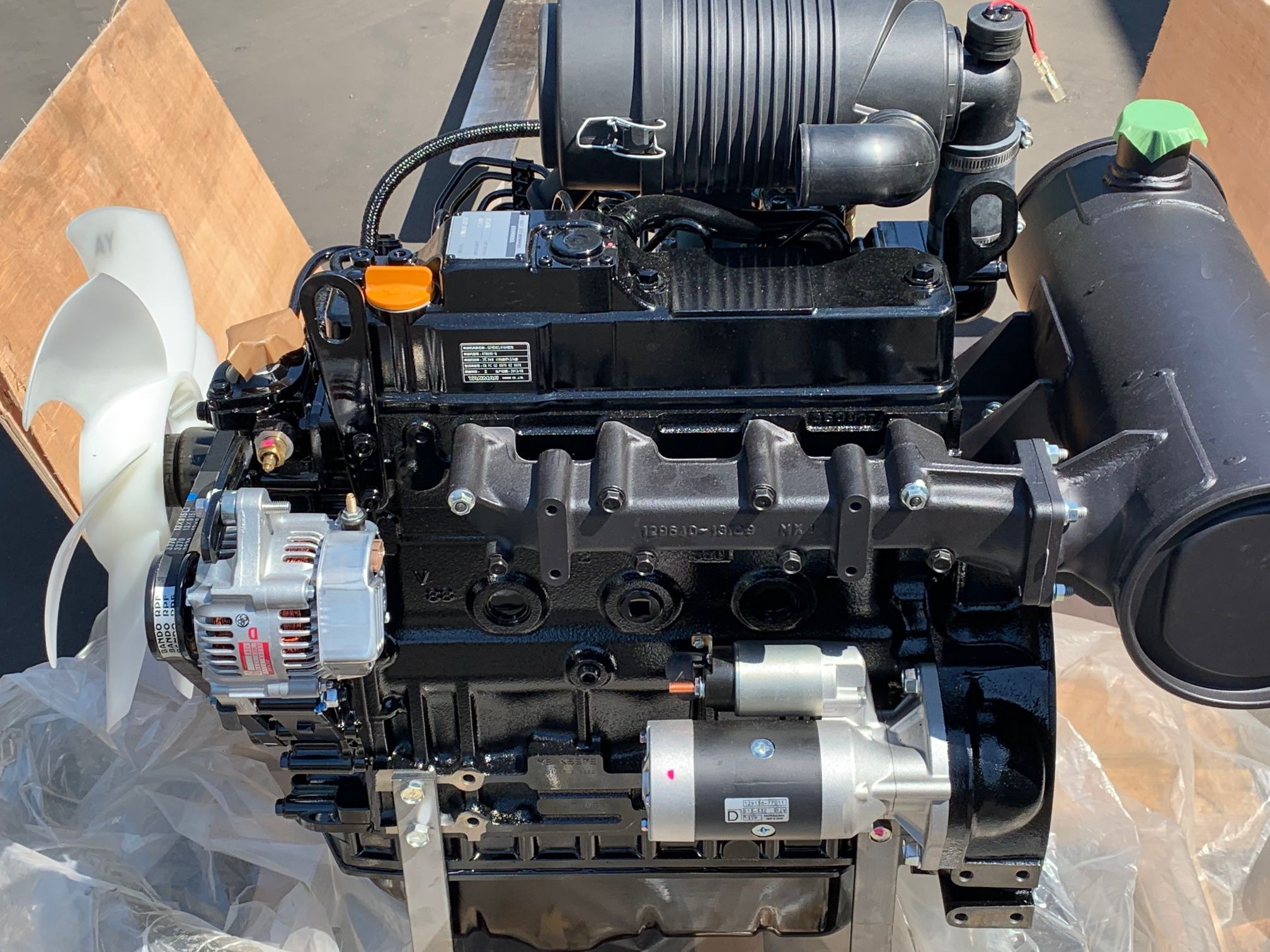

Yanmar 3TNV88 engines for sale

Looking for a 3TNV88 for a Yanmar ViO45? We hold this engine in mechanical and in common rail, new surplus and rebuilt, and we build the core to match the mini excavator it is going into. Send the data plate and we will confirm which one you need. The Yanmar ViO45 is a 4.5-ton class zero tail-swing mini excavator, powered by Yanmar's own 88 mm-bore 3-cylinder direct-injection diesel. ENGINE SPECIFICATION. Three cylinder, four cycle, liquid cooled, vertical in-line. Direct injection, naturally aspirated. Bore and stroke 88 x 90 mm. Displacement 1.642 L (100.2 cu in). Around 36 hp at 3000 rpm at full speed, less in machines governed lower. Dry weight approximately 341 lb (154 kg). Rotation counterclockwise viewed from the flywheel end. Engine as fitted to this machine: 3TNV88. Production years: 2005-2015. Rated output in this machine: approximately approx. 36 hp. WHAT WE FIT TO YOUR MACHINE. On a mini excavator the core engine is only half the job. The bellhousing and flywheel have to mate to your hydraulic pump drive, the oil pan has to clear the undercarriage, and the throttle has to answer to the machine's engine control. Those are all external parts and they carry across from the engine you are pulling out - we build the core to suit. MECHANICAL OR COMMON RAIL - THIS IS THE ONE THING YOU MUST MATCH. The Yanmar 3TNV88 comes in two fuel systems and they are not interchangeable. MECHANICAL INJECTION uses a mechanical pump and governor, with no ECU or sensors - th

When a Yanmar ViO50 needs an engine, the part that trips buyers up is not finding a 3TNV88 - it is knowing whether the machine takes the mechanical version or the common rail one. We carry both, new surplus and rebuilt, and we will tell you which yours runs before you order. The Yanmar ViO50 is a 5-ton class zero tail-swing mini excavator built for confined-space utility and construction work, powered by Yanmar's own 88 mm-bore 3-cylinder. ENGINE SPECIFICATION. Three cylinder, four cycle, liquid cooled, vertical in-line. Direct injection, naturally aspirated. Bore and stroke 88 x 90 mm. Displacement 1.642 L (100.2 cu in). Around 36 hp at 3000 rpm at full speed, less in machines governed lower. Dry weight approximately 341 lb (154 kg). Rotation counterclockwise viewed from the flywheel end. Engine as fitted to this machine: 3TNV88. Production years: 2005-2015. Rated output in this machine: approximately approx. 36 hp. WHAT WE FIT TO YOUR MACHINE. On a mini excavator the core engine is only half the job. The bellhousing and flywheel have to mate to your hydraulic pump drive, the oil pan has to clear the undercarriage, and the throttle has to answer to the machine's engine control. Those are all external parts and they carry across from the engine you are pulling out - we build the core to suit. MECHANICAL OR COMMON RAIL - THIS IS THE ONE THING YOU MUST MATCH. The Yanmar 3TNV88 comes in two fuel systems and they are not interchangeable. MECHANICAL INJECTION uses a

We carry the full range of Yanmar 3TNV88 engines for the Yanmar B50 - mechanical injection and electronic common rail, new surplus and rebuilt - and we build each core to the configuration your mini excavator needs. The Yanmar B50 is a 5-ton class compact excavator from Yanmar's B-series, powered by the 88 mm-bore 3-cylinder direct-injection diesel. A native Yanmar engine application. ENGINE SPECIFICATION. Three cylinder, four cycle, liquid cooled, vertical in-line. Direct injection, naturally aspirated. Bore and stroke 88 x 90 mm. Displacement 1.642 L (100.2 cu in). Around 36 hp at 3000 rpm at full speed, less in machines governed lower. Dry weight approximately 341 lb (154 kg). Rotation counterclockwise viewed from the flywheel end. Engine as fitted to this machine: 3TNV88 / 3TNE88. Production years: 1998-2008. Rated output in this machine: approximately approx. 36 hp. WHAT WE FIT TO YOUR MACHINE. On a mini excavator the core engine is only half the job. The bellhousing and flywheel have to mate to your hydraulic pump drive, the oil pan has to clear the undercarriage, and the throttle has to answer to the machine's engine control. Those are all external parts and they carry across from the engine you are pulling out - we build the core to suit. MECHANICAL OR COMMON RAIL - THIS IS THE ONE THING YOU MUST MATCH. The Yanmar 3TNV88 comes in two fuel systems and they are not interchangeable. MECHANICAL INJECTION uses a mechanical pump and governor, with no ECU or se
