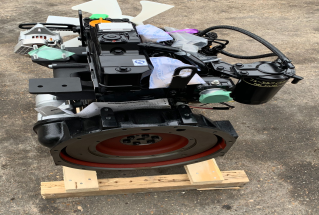

Looking for a 3TNV88 for a John Deere 317G? We hold this engine in mechanical and in common rail, new surplus and rebuilt, and we build the core to match the compact track loader it is going into. Send the data plate and we will confirm which one you need.
The John Deere 317G is a compact track loader in Deere's G-series, built for site prep, landscaping and general construction work. It is powered by the Yanmar 88 mm-bore 3-cylinder. Track loaders place sustained high load on the engine, making correct specification particularly important.
ENGINE SPECIFICATION. Three cylinder, four cycle, liquid cooled, vertical in-line. Direct injection, naturally aspirated. Bore and stroke 88 x 90 mm. Displacement 1.642 L (100.2 cu in). Around 36 hp at 3000 rpm at full speed, less in machines governed lower. Dry weight approximately 341 lb (154 kg). Rotation counterclockwise viewed from the flywheel end. Engine as fitted to this machine: 3TNV88. Production years: 2016-2024. Rated output in this machine: approximately approx. 36 hp.
WHAT WE FIT TO YOUR MACHINE.
On a track loader the engine drives the hydrostatic pumps under sustained heavy load. The bellhousing, pump drive, oil pan and cooling package are external and transfer from your old engine onto the replacement core.
MECHANICAL OR COMMON RAIL - THIS IS THE ONE THING YOU MUST MATCH.
The Yanmar 3TNV88 comes in two fuel systems and they are not interchangeable. MECHANICAL INJECTION uses a mechanical pump and governor, with
